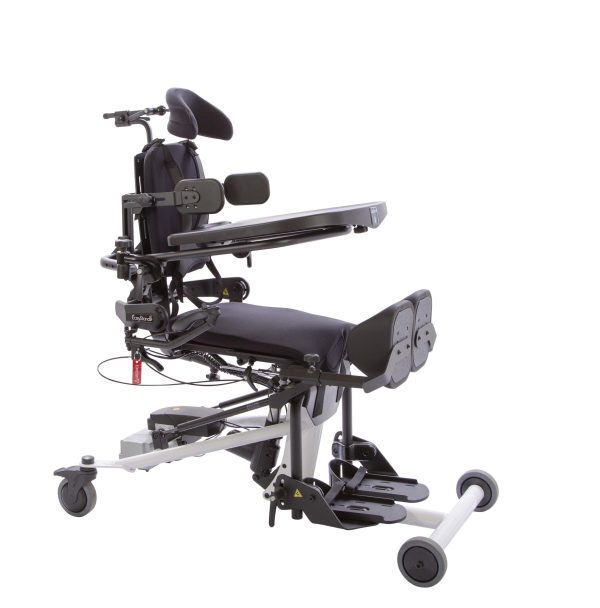

Easystand Bantam Medium

Brand: Easystand Product Code: PY5500-1

Easystand Bantam Medium

Brand: Easystand Product Code: PY5500-1

The bantam line of standers from Easystand are the only sit to stand standers that combine the option of supine positioning to create infinite positioning possibilities from 90-90 sitting, fully vertical standing, full supine lying and anywhere in between.  No other standers can provide the amount of positioning that is possible with the EasyStand Bantam.

The New Medium bantam is now available with Pow’r up lift & Supine functionality as standard, accommodating hip & knee contractures, and making transfers easier!

Description

The bantam line of standers from Easystand are the only sit to stand standers that combine the option of supine positioning to create infinite positioning possibilities from 90-90 sitting, fully vertical standing, full supine lying and anywhere in between.  No other standers can provide the amount of positioning that is possible with the EasyStand Bantam.

The New Medium bantam is now available with Pow’r up lift & Supine functionality as standard, accommodating hip & knee contractures, and making transfers easier!

Medium Bantam Specifications
Approximate Height Range122-168cm
Weight Limit91kg
Seat Depth Range, Planar (from seat pivot to flat back surface)38-51cm
Seat Depth Range, Planar (from seat pivot to flat back surface)38-51cm
Seat (Planar) Height From Floor (transfer height)56cm
Seat (Contour) Height From Floor (transfer height)64cm
Seat to Footplate Range (Planar)24-47cm
Seat to Footplate Range (Planar) -Inverted Brackets18-32cm
Kneepad Depth Range (from seat pivot)8-20cm
Kneepad Width20cm
Kneepad Dimensions23x18cm
Back Height From Flat Seat to Top of Back, Short38cm
Back Height From Flat Seat to Top of Back, Tall48cm
Back Height From Contour Seat to Top of Back, Short42cm
Back Height From Contour Seat to Top of Back, Tall52cm
Weight of Basic Unit49kg
Frame Footprint, Standard62x113cm
UpholsteryBlack Nylon/Neuprene or Molded Urethane
Frame ColorSplatter Midnight
Casters & Wheels (diameter13cm
Lifting MechanismManual Hydraulic Lift
Seat Pad Size Planar (Width)38cm
Shadow Tray
Shadow Tray Size53x61cm
Shadow Tray Height (from top of planar seat)14-29cm
Shadow Tray Height (from top of contour seat)18-32cm
Shadow Tray Chest Pad Depth Range (from planar back)5-25cm
Shadow Tray Chest Pad Depth Range (from contour back)9-29cm
Weight of Shadow Tray Assembly, Black Molded Tray 4.8kg
Add for Clear Acrylic Tray1.4kg
Acrylic Tray Size56x74cm
Shadow Tray Angle Adjust Range+40° inclines to -90°
Options
Frame Footprint (w/ optional Swivel Casters)72x119cm
Lifting MechanismPow’r Up Lift
Supine Positioning0-90°
T-Style Handle-Extends (each direction)18cm
Adjustable/Removable Actuator Handle Range+/- 15° from neutral
Foot Straps- fits foot height of 8-15cm
Secure Foot Straps- fits foot height of8-15cm
Kneepad Height Range +/- 4cm
Footplate Size Extra Small20x9cm
Footplate Size Small25x11cm
Footplate Size Medium30x13cm
Multi-Adjustable Footplates Plantar/Dorsi+/- 20°
Multi-Adjustable Footplates Fore/Aft+/- 2cm + extra 3.8cm
Multi-Adjustable Footplates Rotation 30° left/right
Multi-Adjustable Kneepads Width Range13-23cm
Elbow Pad, Cutout Width24cm, 28cm, or 33cm
Elbow Pad, Overall Width55cm
Elbow Pad, Extension (back from current table edge)10cm
Hip Support Pad Size10x16cm
Hip Supports Width Range23-38cm
Hip Supports Height Range+/- 2.5cm
Lateral Support Pad Size10x15cm
Lateral Supports Width Range23-37cm
Lateral Supports Height Range (tall back)28-51cm
Lateral Supports Height Range (short back)25-43cm
Lateral Supports Fore/Aft Adj8cm
Seat Pad Size- Contoured Narrow (Width)28-33cm
Seat Pad Size- Contoured Wide (Width)31-36cm
Back Pad Size Planar (Short)29x29cm
Back Pad Size Planar (Tall)39x29cm
Back Pad Size Contoured (Short)27x28cm
Back Pad Size Contoured (Tall)36x31cm
Chest Pad Contoured (Large)24x38cm
Chest Strap (Pad Size)13x20cm
Chest Vest – X-Style 11”Lx9.5”W28x24cm
Chest Vest – X-Style 14.5”Lx10.5”W37x27cm
Chest Vest – Y-Style 17.5”Lx11.5”W44x29cm
Chest Vest – Y-Style 20.5″Lx12.5″W52x32cm
Head Support Height Range (from seat, short back)46-69cm
Head Support Height Range (from seat, tall back)56-79cm
Head Support Depth Range (from backrest)-6cm to +4cm
Head Support-Extra Small13x20cm
Head Support-Small15x25cm
Head Support-Large18x36cm
Positioning Belt- Hip Circumference to 168cm
Positioning Belt with Airline Style Buckle- Hip Circumferenceto 168cm
Chest Pad Height Range (from seat pivot)47-84cm
Tray Height Range (from seat pivot) 33-74cm
Tray Fore/Aft Range (from seat pivot to standard chest pad)2.5-28cm
Frame Footprint (Swing-Away Standard)70-112 cm
Frame Footprint (Swing-Away Swivel Front)75x121cm
